Air Cooled Shaker

The air-cooled series electro-dynamic vibration test system has the advantages, such as wide frequency range, excellent indicators, high reliability, small floor space, easy to move, and easy to operate. At present, this series has a variety of models of vibration generators to choose. The exciting force range is from 1kN to 70kN and maximum load is from 70 kg to 1000 kg. Also, the climate and mechanics environmental testing equipments are provided.

Performance characteristics

Sinusoidal excitation force range: 1kN ~ 70kN

Random to sinusoidal excitation force ratio 1:1

Two-times-of-sine shock force (Three times optional)

Displacement peak-to-peak value of 25mm, 40mm, 51mm, 76mm or 100mm

Lightweight armature with optimization design and strong vibration-resistant performance, and with better vibration isolation effect of air spring at trunnion position

Strong bearing capacity of air spring in central room, and good low-frequency performance

Double magnetic circuit design, with low flux leakage and uniform magnetic field

Sine, Random and Shock etc. test function

Good cooling effect and low noise fan

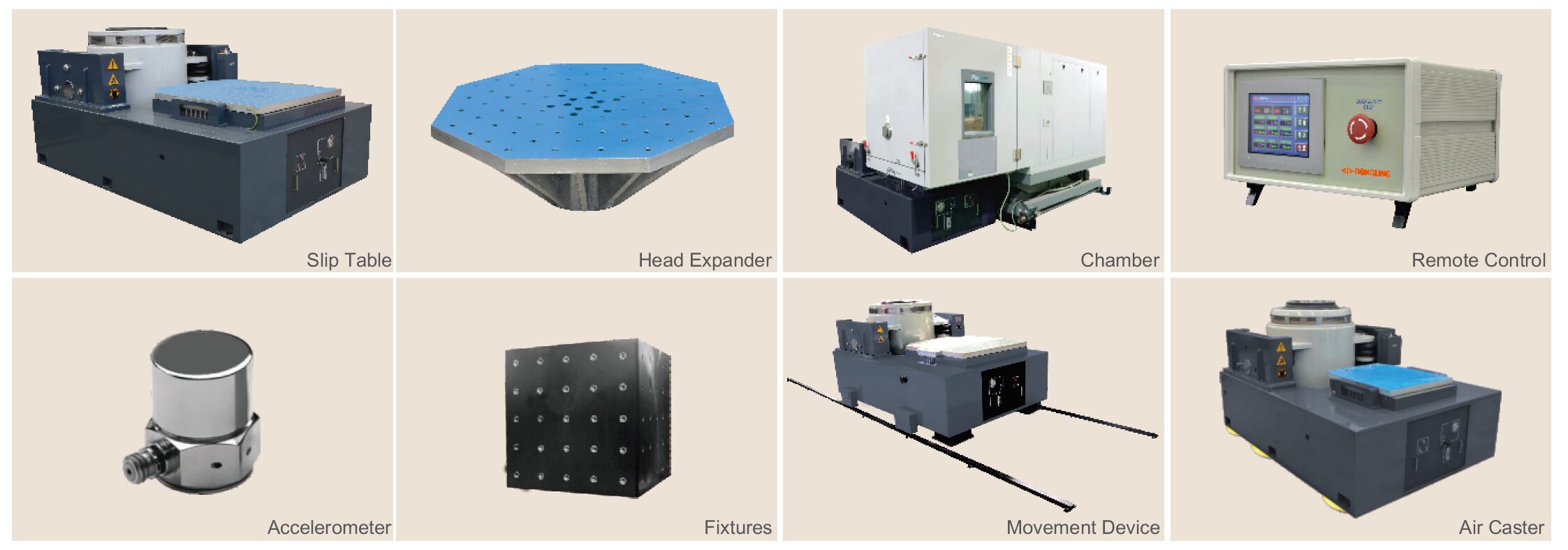

Optional accessories

ES-20LS3-340 Air Cooled Shaker

System Model	ES-20LS3-340
System Performance	Metric	American
Rated Sine Force	20 kN	4400 lbf
Rated Random Force	20 kN	4400 lbf
Rated Shock Force	40/60* kN	8800/13200* lbf
Usable Frequency	DC-3000 Hz	DC-3000 Hz
Maximum Velocity	2/2.5* m/s	78.7/98.4* in/s
Maximum Acceleration	800 m/s²	80 g
Maximum Static Payload	300 kg	660 lbs
Resonance Frequency	2400±5% Hz	2400±5% Hz
Maximum Displacement (p-p)	76 mm	3 in

Shaker Model	ET-20LS3-340
Mass of Moving Elements	25 kg	55 lbs
Armature Diameter	340 mm	13.4 in
Weight Uncrated	1695 kg	4332 lbs
Body Suspension Natural Frequency	<2.5 Hz	<2.5 Hz
Stray Flux Density	<10 Gauss	<10 Gauss
Dimension L×W×H	1182×758×1052 mm	21.5×33×69 in

Power Amplifier Model	SDA-20
Power	20 kVA	20 kVA
Power Supply Requirement	42 kVA	42 kVA
Dimension L×W×H	607×820×1465 mm	23.9×32.3×57.7 in
Weight Uncrated	450 kg	992 lbs

Blower Model	B-2000LN
Power	7.5 kW	10.06 hp
Air Flow	0.71 m³/s	710 l/s
Air Pressure	3.5 kPa	0.508 psi
Weight Uncrated	140 kg	309 lbs

Options

● Magnesium or Aluminum Armature ● Combo or Standalone Slip Table ● Motorized Shaker Body Rotation System ● Head Expanders and Vertical Support Platforms ● Thermal barrier ● Customized Fixtures (T, L, Cube) ● Pneumatic Isolators or Free Foundation Isolation Base ● Air Caster or Glide Rail ● Enclosed Air Inlet and Outlet Ducts ● Remote control

Outline Drawing

NOTE: In keeping with our commitment to continuous product improvement, the information here in is subject to change. Additional Models & Customization: We also offer a wide range of models and customization options to meet specific testing needs. Please contact us for more details.
