Introduction To meet market needs, ACS designs and produces standard and customized equipment for conducting Sand and Dust tests which comply with all the principal international standards. ACS chambers can reproduce all the conditions specified in the standards requiring continuous ventilation (DlN 40046,MIL-STD 331 and MIL-STD 810 C), dust drop tests (DlN 40052), and tests with irregular whiff of compressed air (SAE J575). Standard Sand and Dust chambers are available in different 1000L capacity models for conducting tests in compliance with:

• SAE J575,EN 60529 FIG.2
• IEC/CEI EN 60068-2-68 (La2)NORMS -IP5X class of protection
• EN 60529 FIG.2- IEC/CEI EN 60068-2-68(La2)NORMS – IP5X class of protection equipped with vacuum system for lP6X tests.

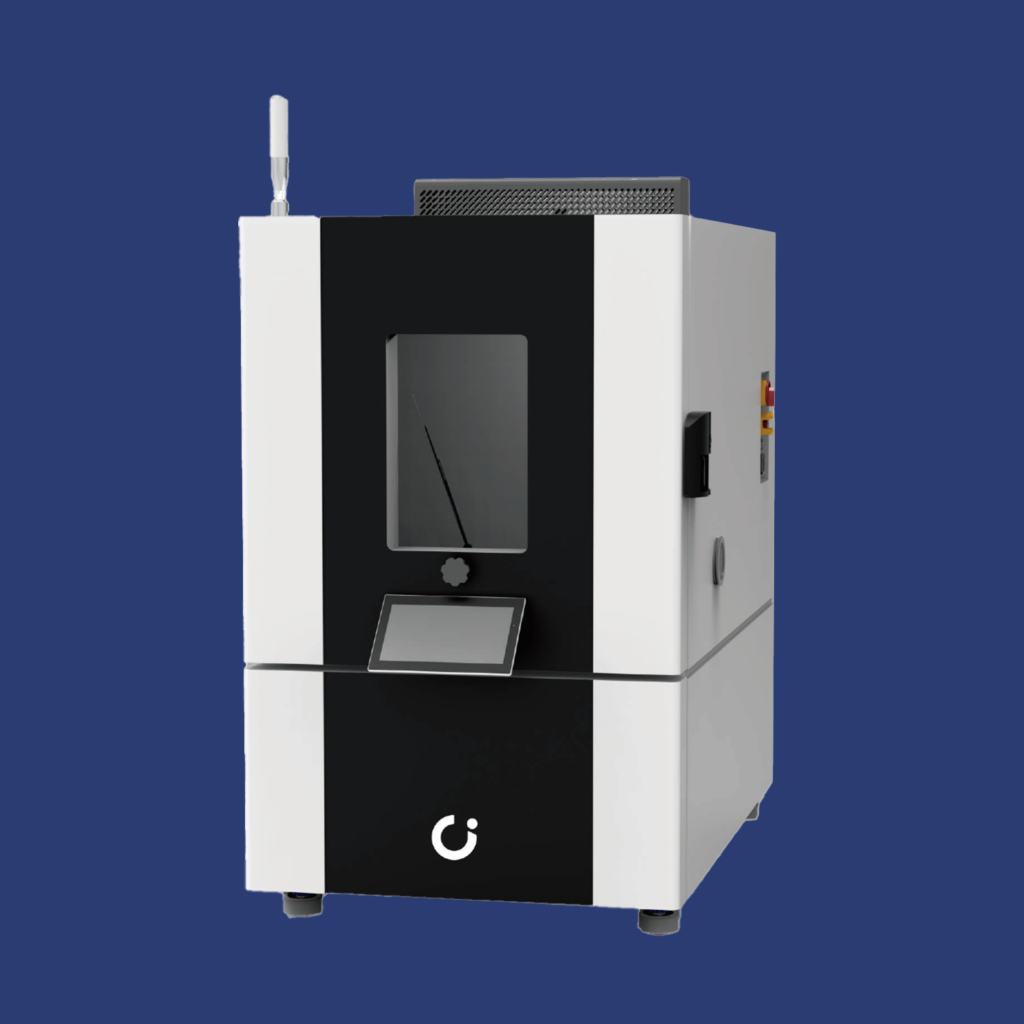

IP5/6X Dust Test Chamber
Model	Internal dimensions	External dimensions	Power
YX-IP56X-125L	500*500*500mm	950*750*1500mm	1.0KW
YX-IP56X-500L	800*800*800mm	1250*1020*1770mm	1.5KW
YX-P56X-1000L	1000*1000*1000mm	1450*1220*1970mm	1.5KW
YX-IP56X-1500L	1000*1500*1000mm	1450*1720*1970mm	2.0KW
Time setting range	0-999h Adjustable
Temperature setting range	RT+10-70℃ (Specify when ordering)
Test dust	Talcum powder/Alexander powder
Dust dosage	2-4Kg/m³
Dust reduction method	Free powder spraying for dust reduction
Vacuum degree	0-10.0Kpa (Adjustable)
Protector	Leakage protection and short circuit protection
Supply voltage	220V
