Introduction Such a series of impact test chamber adopts a structure of cold and thermal chambers and utilizes a bucket rapidly transforming specimens to the test area, so as to conduct cold and thermal shock tests. This impact mode reduces thermal load during cold and thermal impact and shortens temperature recovery time to the greatest extent. Feature

• This series chamber using cold and heat two chambers structure, mainly used for hot and cold temperature impact test material in an instant, in a very short period of time test caused by heat bilges cold shrink can bear by chemical or physical damage.
• 7 inches large color touch screen program control, running status be clear at a glance.
• The user can save 50 to edit test procedure, also has a record of 365 days parameter function (equipped with paperless recorder).
• In accordance with the requirements of recovery time, automatic equipment precooling, preheating temperature, adjust the working status of test cases to be the best.
• Low error, the wind speed is high, the uniform sample exposure.
• Province energy consumption, low noise design.
• Shopping basket conversion time is less than 10 seconds, temperature recovery time for 5 minutes.
• High temperature and low temperature zone can be independently controlled respectively, three with a chamber.
• GJB150.3, GJB150.4, specifically for army GJB150.5, us military standard MIL – STD – 810d test standard design.

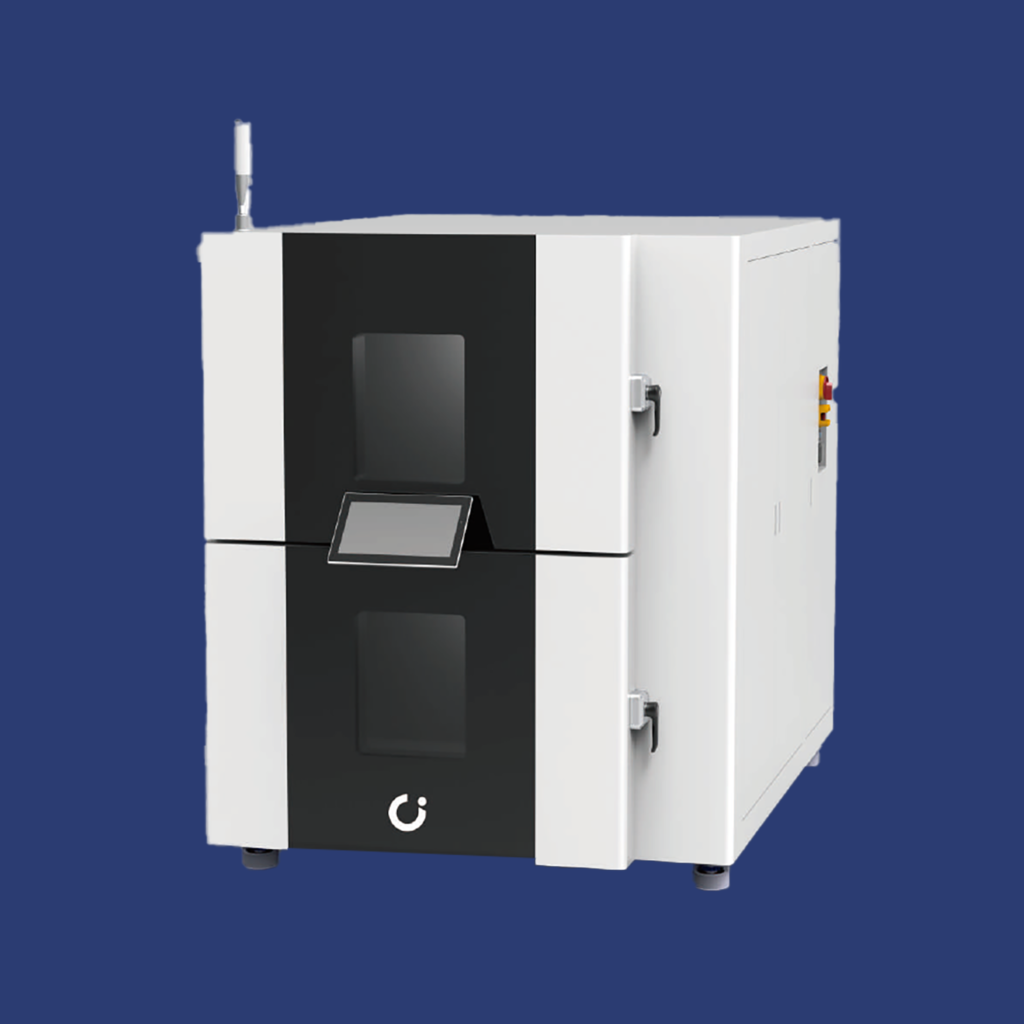

Temperature Shock Chamber（Two Chamber)
Model			JTS50M-B/S/E	JTS100M-B/S/E	JTS150M-B/S/E	JTS200M-B/S/E	JTS320M-B/S/E	JTS500M-B/S/E	JTS1000M-B/S/E
Nominal inside volume（L)			50L	100L	150L	200L	320L	500L	1000L
Performance Parameter	Heating chamber	Temperature exposure range	+50℃～+150℃
		Upper limit of preheating temperature	200℃
		Heating time	RT~+200℃, B type: ≤ 50min; S type: ≤ 40min; E type: ≤ 30min
	Cooling chamber	Temperature exposure range	B type: 0～-40℃; S type: 0～-55℃; E type: 0～-65℃
		Lower limit of pre cooling temperature	-75℃
		Cooling time	RT~+70℃, B type: ≤ 60min; S type: ≤ 50min; E type: ≤ 40min
	Hand basket	Temperature shock range	B type:-40℃～+150℃; S type: -55℃～+150℃; E type: -65℃～+150℃
		Temperature fluctuation	≤±0.5
		Temperature uniformity	≤2℃
		Temperature deviation	≤±2℃
		Conversion time	≤10s
		Temperature recovery time	5 min
		Load (steel)	3kg	5kg	7kg	10kg	15kg	20kg	40kg
	Optional: High and low temperature test function	Temperature range	-65℃～+150℃
		Temperature rise and fall rate	B type nearly 2℃/min; S type nearly 4℃/min; E nearly 6℃/min
		Remarks	Above indicators are measured in no load at ambient temperature of 20±2°C(According to GB/T 5170.2-2017)
Inner dimensions		D	350	400	500	600	650	800	1200
		W	350	500	600	600	600	700	800
		H	400	500	500	550	550	900	1000
External dimensions		D	2000	2250	2350	2550	1950	2200	2650
		W	1400	1570	1670	1670	2700	3000	3000
		H	1950	2150	2150	2250	2300	2400	2600
Caster			4, 6 for over 500L (caster dimension is not included in above overall dimension,caster rises by 60-120mm)
Test hole			OneΦ50				OneΦ100
Stainless steel shelf (2 pcs in standard configuration)			Bearing 15kg/pc	Bearing 30kg/pc			Bearing 50kg/pc
Using environment temperature			0～+40℃
Shell			Sprayed steel plate
Interior			SUS304 stainless steel
Cooling mode			water-cooling, (water temperature 7～28℃, hydraulic pressure 0.2～0.4Mpa，To ensure cooling performance）
Controller			7′ Color touch screen Controller
Communication function			RS485 or standard RJ45 network interface, standard USB interface
Power supply			380V+10%/50HZ+1,three-phase-five-wire system (3P+N+G)
Meet the testing method			GJB150.5-2009, GB/T 2423-2008; The optional high and low temperature test function also meets the requirements of GB2423.1-2008, GB2423.2-2008, GJB150.3-2009, GJB150.4-2009.
Safety precautions			Power supply undervoltage, overvoltage, phase loss, and phase sequence error protection; Triple over temperature protection; Heater short circuit protection, refrigeration unit overpressure/ overload/ oil shortage protection; humidifier fault protection; Overload/overheating protection for blower motor, overcurrent protection and leakage protection for control board; Cooling water shortage protection, gas source undervoltage protection, etc.
Optional			1.Optional high and low temperature testing function; 2. Optional special test holes and special shelves; 3. Optional liquid nitrogen function.
